| Model | Connection |
Max. operating pressure |
Max. operating pressure differential |
Max. operating temperature |
Valve opening temperature |
Body material |
||||||
| Type | Size | Size | (MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | (℃) | (℉) | ||

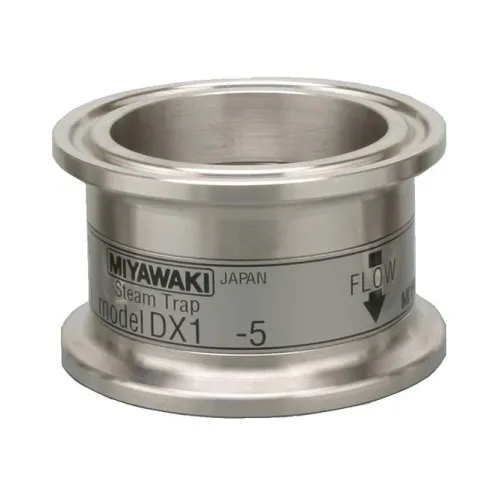

| DX1-5 |
Ferrule |
38mm (ISO standard) |
1.5 in (ISO standard) |
0,5 | 72.5 | 0,5 | 72.5 | 160 | 320 |
5℃ below Saturation temperature |
9℉ below Saturation temperature |
Stainless steel SUS316 |
|
DX1R-5* (with orifice) |
||||||||||||
*DX1R: The design (with orifice) prevents condensate from accumulating in the body in the event of a halt in the supply of steam.
●Maximum allowable pressure (PMA): 1,0MPa (145psig) PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 185℃ (365℉) TMA is the temperature that can be tolerated by the main unit (body).
●Min. operating pressure differential (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.
●Surface height: Ra1.6a (Ra: Arithmetic average height)
*You can use this in a set with a check valve (CX1). (available separately)
