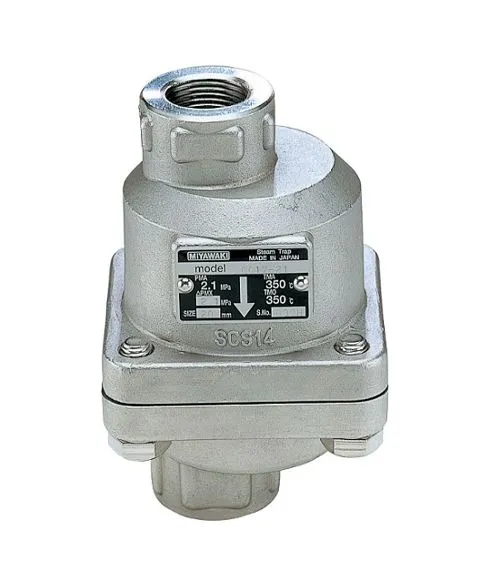

The Steam Trap Miyawaki GC1V offers reliable condensate removal and energy optimization in steam systems. This steam trap is built to handle demanding industrial environments, ensuring long-term reliability and reduced energy waste.
Veža Equipment – Your Trusted Source for Steam System Components
At Veža Equipment, we provide high-quality steam traps and system components designed for energy efficiency and reliable performance. Our expert team is ready to help you choose the best solutions for your steam systems. With fast shipping and excellent customer support, Veža Equipment is your trusted partner for industrial steam solutions.
| Model | Connection |
Max. operating pressure |
Max. operating differential pressure |
Max. operating temperature |
Body material |
||||
| Type | Size |
PMO (MPa) |
PMO (psig) |
⊿PMX (MPa) |
⊿PMX (psig) |
TMO (℃) |
TMO (℉) |
||
| GC1V-10 |
Screwed Rc,NPT |
1/2” | 1,0 | 145 | 1,0 | 145 | 350 | 662 |
Stainless cast steel SCS13A |
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-16 | 1/2” | 1,6 | 230 | 1,6 | 230 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-21 | 1/2” | 2,1 | 305 | 2,1 | 305 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-10F |
Flanged FF,RF |
1/2” | 1,0 | 145 | 1,0 | 145 | |||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-16F | 1/2” | 1,6 | 230 | 1,6 | 230 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-21F | 1/2” | 2,1 | 305 | 2,1 | 305 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-10W |
Socket Weld SW |
1/2” | 1,0 | 145 | 1,0 | 145 | |||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-16W | 1/2” | 1,6 | 230 | 1,6 | 230 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC1V-21W | 1/2” | 2,1 | 305 | 2,1 | 305 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
●Maximum allowable pressure (PMA): 2,1MPa (305psig) PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 350℃ (662℉) TMA is the temperature that can be tolerated by pressure-resistant parts (body).
●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.
*Available flange standards: ASME/JPI, DIN, JIS
